                            LOW PROFILE CONVEYORS




Up

AccuMove ™

Timing Belt Conveyors



CLICK ON IMAGE FOR LARGER VIEW

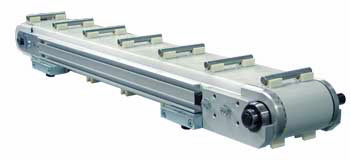

17 TOOTH LOW PROFILE

Minimum Torque Requirements

Minimum Inertia Values

Lower Height

Greater Accuracy

Lower Cost




CLICK ON IMAGE FOR LARGER VIEW

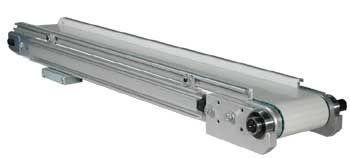

25 TOOTH LOW PROFILE

Permits Larger Welded Profiles

Preferred for Side Load / Unload

Suitable for Magnetic Applications

Recommended for Multiple Belts

Higher Speeds

SPECIFICATIONS

  1. Standard belt widths from 50 to 450 mm.
  2. Standard lengths 2 - 10 feet. ( Special lengths available. )
  3. Powder Coated single piece 10 GA. steel frame. ( Available with dual
    "T" slots on each side. )
  4. Solid Urethane Timing belts with steel or Kevlar tension members
    and Nylon coating for reduced friction and wear.
  5. Sealed for life Bearings eliminate lubricant contamination of product.
  6. Precision tension calibration.
  7. Compatible with our standard Drives and Accessories.
  8. All units utilize (1) of (3) different methods of belt self-tracking.
  9. Indexing Drives utilize Stepper, Servo or Brushless D.C. motors,
    all with position verification. If desired user can apply their own drive.

FUNCTIONS

bullet

Precision Indexing and 4-Axes Positioning

bullet

Synchronous movement of multiple Conveyors

bullet

High cyclic rates

bullet

Reversing

bullet

Heavy Loads

bullet

Side load / unload

bullet

High speeds (2000'/MIN.)



APPLICATIONS

bullet

Assembly

bullet

Vision Inspection

bullet

Laser Imprinting

bullet

Pharmaceutical

bullet

Packaging

bullet

Machine Integration



Available in Standard, Welded Profile, Fixed Pallet, Magnetic,
Vacuum, and Wash-down on Special Order, in English or Metric versions.

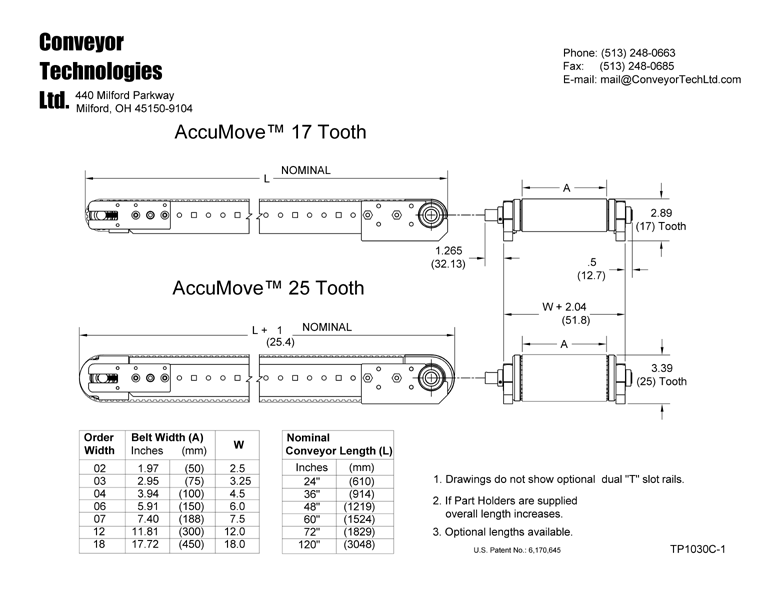

NOMINAL DIMENSIONS FOR SYNCHRONOUS BELT CONVEYORS

Click here for the drawing shown below in PDF format: TP1030C-1.pdf
