FlexLoc

LOW PROFILE CONVEYORS

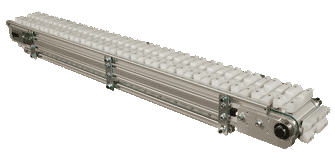

FlexLoc ™ Series "S" with Type 2 Part Holders		FlexLoc ™ Series "T" with Type 2 Part Holders

FlexLoc ™ Series "T" with Type 3 Part Holders and Return Guide System

Click on Image for larger view.

Guided Part Holder Conveyors

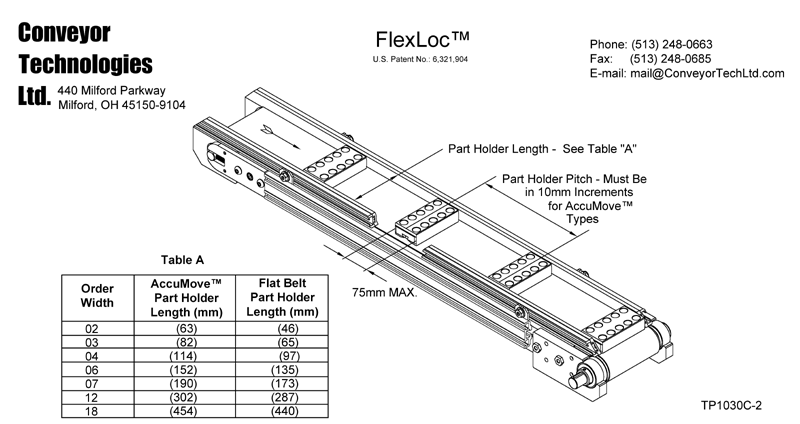

Indexing conveyor features integral part holders. System provides a rigid preload of the holder against the belt, permitting greater accuracy and durability than welded profiles. Holders are easily disengaged from the belt. Optional sub-plates allow customers to mount their holders and adjust for improved accuracy. Ideal for Assembly and Vision Inspection Applications.

PART POSITIONING ACCURACY

Various factors can effect (4) axes part positioning accuracy.
Tolerances related to lateral belt positioning, belt tooth clearance,
drive type, welded profile position, and the holder itself can all
influence accuracy. Contact factory for accuracy values for
your specific application.

Conveyor Technologies Ltd. addresses all these areas to
provide a typical part positioning accuracy of ±.01".

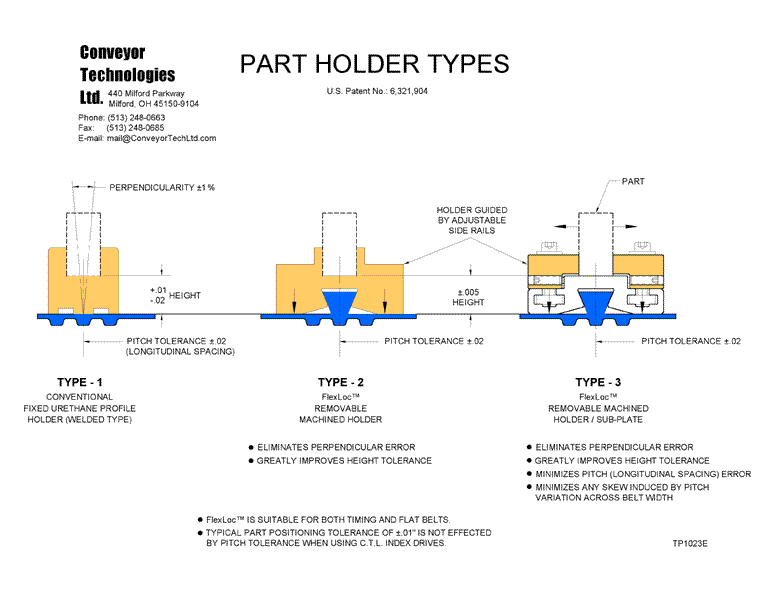

GUIDED PART HOLDERS

	Utilizes standard belting which retains full load rating.
	Sub-Plate permits attachment of user supplied Part Holders.
	Holders and Sub-Plates can be rapidly removed without tools
	FlexLoc™ reduces joint stress, and permits low inertia pulleys.
	Part Holders feature a preloaded mounting with a Guided Travel.
	Accuracy, Versatility and Durability are greatly improved with FlexLoc™
